FCAW Welder may be qualified by volumetric NDE?

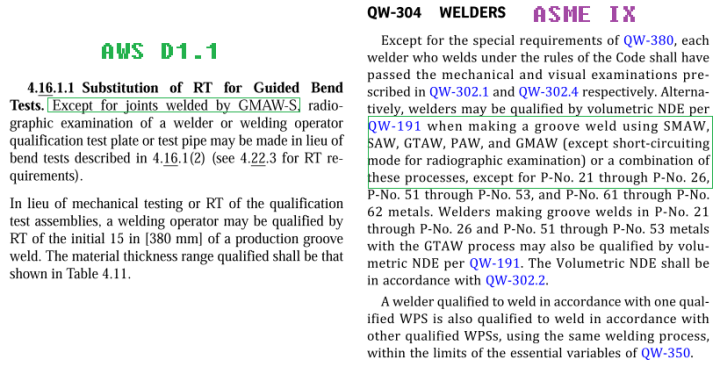

During reading between code D1.1 & ASME IX, a confusion point about welder qualification testing method RT/UT can be carried out in spite of Bend test.

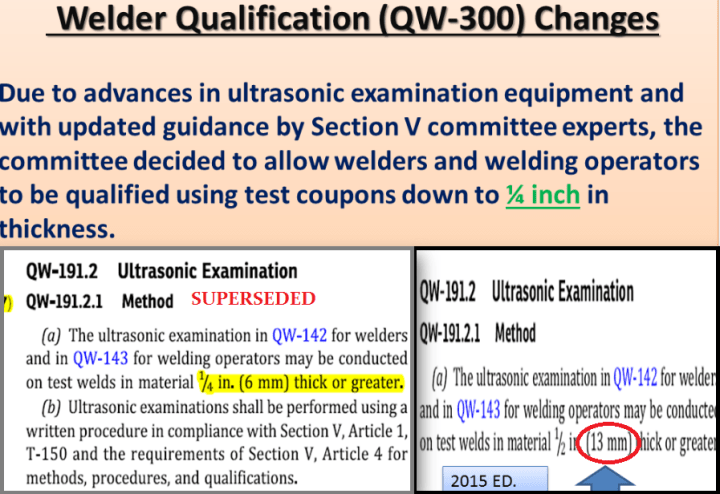

WELDER1
Volumetric NDE like UT can be used for qualifying the welder test coupon.

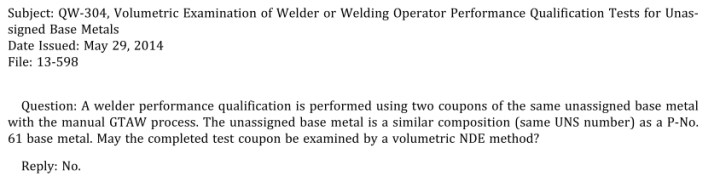

Note: From Asme IX extract, there’s no mention about the RT test can be used as alternatives for welder qualification in FCAW process.

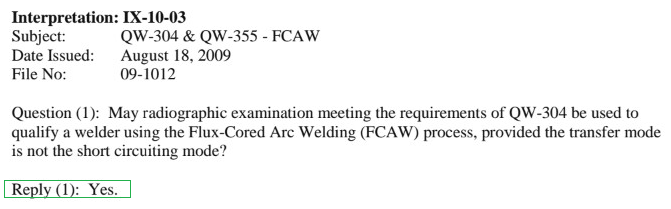

But as per the Interpretation, it can be used. ENJOY!


Note that:

If the welding with unlist material, the procedure of Welder qualification to be follow as required in table 452.1 (a)
