CSWIP 3.1 TERMS & DEFINITION

PART 1.png

Key notes:

TERMS:

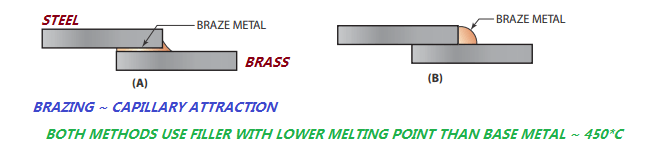

Brazing (A) vs Braze welding (B)

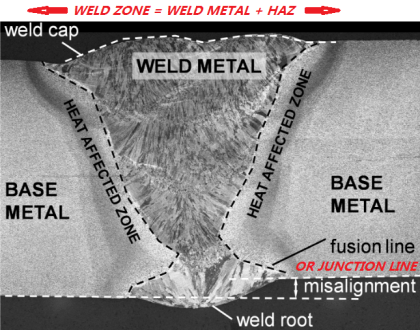

Weld Zone


JOINT TYPE:

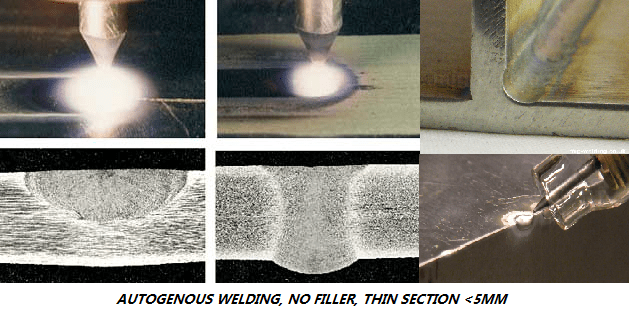

Autogenous welding

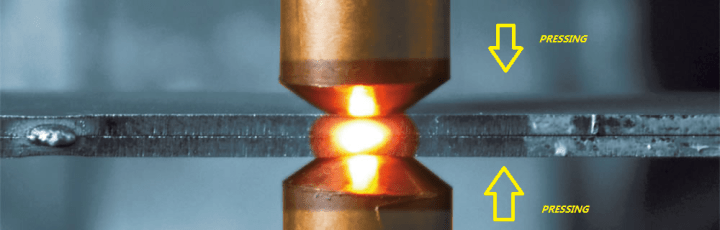

Spot weld Lap joint (Electric resistance welding)


WELDING PREPARATION:

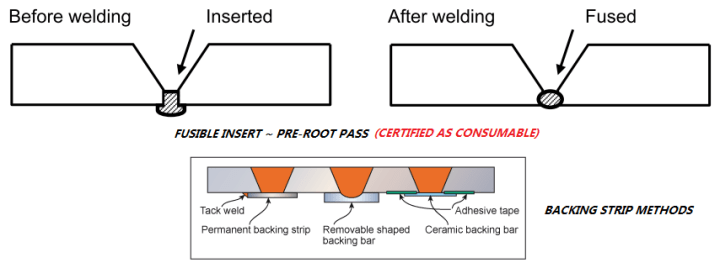

EB insert (Backing ring) vs Backing strips

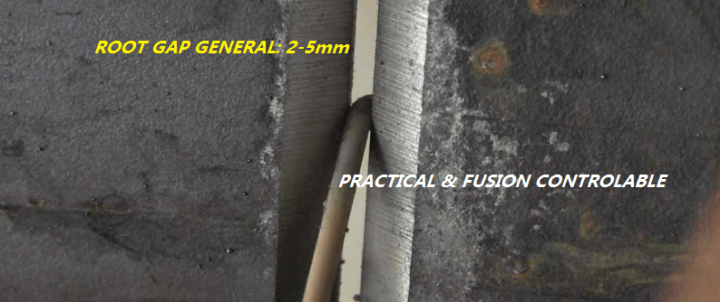

General Root Gap

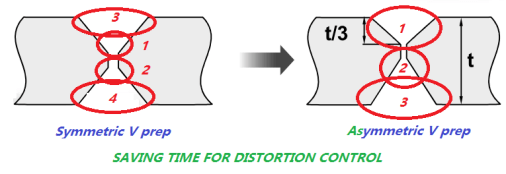

Asymmetric preparation


WELDING TYPE:

Compound weld and Special Groove (Bevel) weld in T-joint

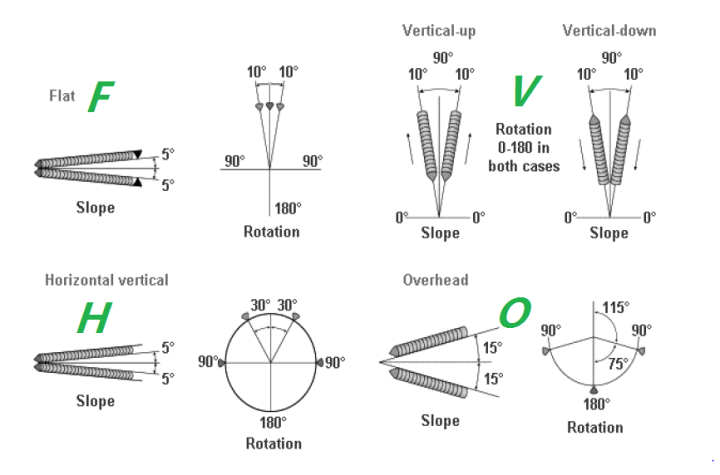

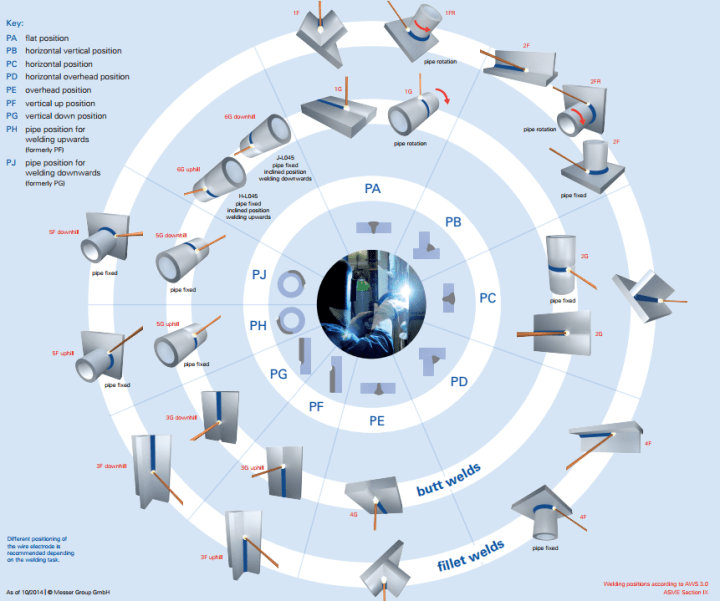

WELDING POSITIONS:

Test Position vs Qualifying Position

TEST POSITION РSTANDARDIZED
QUALIFYING POSITION – RANGED
