What is Built-up Backpressure of PRV?

Continue on: What is Backpressure, Superimposed Backpressure?

Built-up Backpressure of PRV;

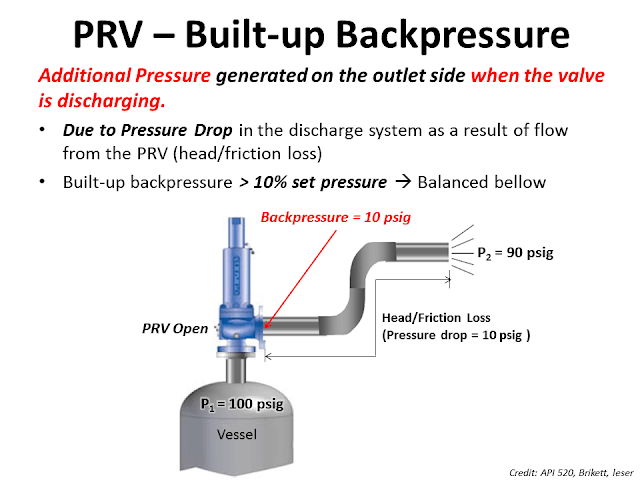

Built-up back pressure is the pressure that will occur when the pressure relief valve (PRV) opens and the pressure is released. This is because there Head/friction loss (Pressure drop) in the pressure relief system:

What is Built up Backpressure of  PRV.png

Example of PRV Backpressure;

Example of Backpressure Calculation of Pressure Relief Valves (PRV) in the system

What is Built up Backpressure of  PRV 2.png
