CSWIP 3.1 WELDABILITY

PART 8.png

Key notes:

General:

Weldability depend on Carbon and alloy elements

Poor weldability mean –> the occurrence of cracking

Alloying elements:

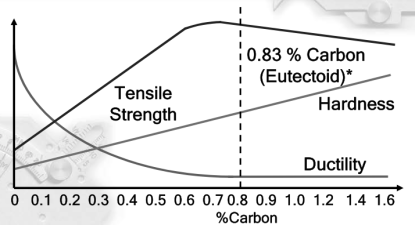

Carbon

Most effect to the Hardness

Hardness is invert proportion Ductility




%C typical <~ 0.25-0.3%


%CE or CVE ~ 0.4-0.5%


Manganese

De-sulfure –> reduce rick of Hot cracks (Solidification Crack)

C-S (<0.8% Mn) vs C-Mn-S (<1.6% Mn)

Molybdenum

  • For Creep resistance  (at High temp operation)



HIC

Critical points

Higher susceptible in Alloy C-S (crack in weld) than C-S (crack in HAZ)


Chevron (arrow) crack most occurred in SAW

HIC never happen in Ni/Cu alloy (they can’t be harden by heat)

Hydrogen level depends on Welding processes:


Solidification Cracking

Term ” Intergranular liquid firm ”  —> Hot crack


Lamellar tearing

# Lamination (manufacture) vs Lamellar tearing (welding)

“Step like” appearance

Location just below the HAZ & Through thickness direction


The thicker the higher lamellar tearing susceptibility

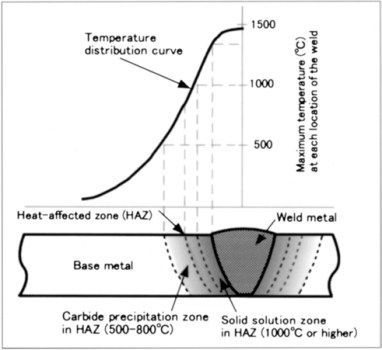

Weld decay ~ Inter-granular corrosion

  • Because of Chrom-carbide (form at 650-800*C) at grain boundary (HAZ area)

Ti/NbStabilizer (avoid forming Chrom-carbide) – Grade 321/347/348
