CSWIP 3.1 DT & NDT

PART 7.png

Key notes:

General:

Fillet weld fracture and Butt weld nick-break tests are not used for WPS (only for WPQR)

CTOD impact test is used for Special concern in specification, not WPS

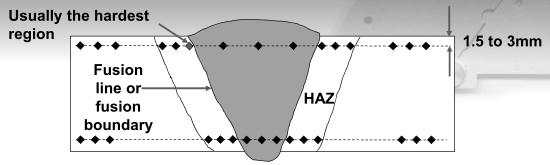

Hardness test: (Brinell-BHN/Vicker-HV/Rockwell-Rc)

Hardest region


Impact test:

Izod vs Charpy

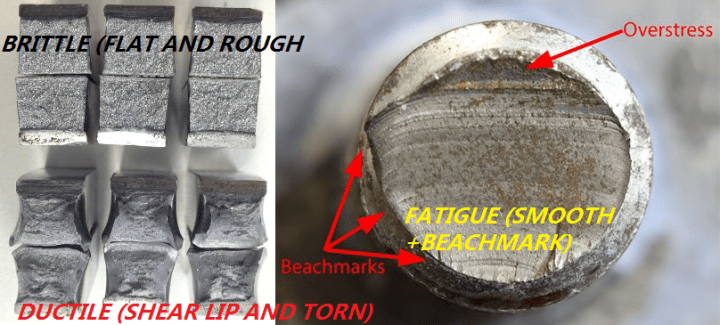

Visual assessment


 Tensile test:

Proof stress Rp 0.2 – used for un-identified Y.S material (aluminium)

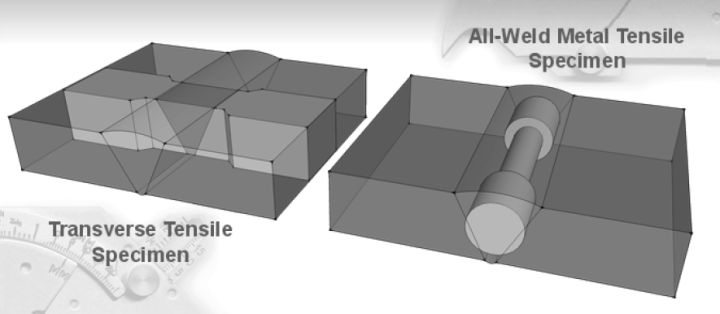

Measuring the “overall strength of weld joint” –> TRANSVERSE T.S TEST



All weld metal T.S test –> For Electrode Manufacture only!

Transverse test: Crack in Weld metal  ~> Base UTS, Crack in HAZ ~> 95% Base UTS

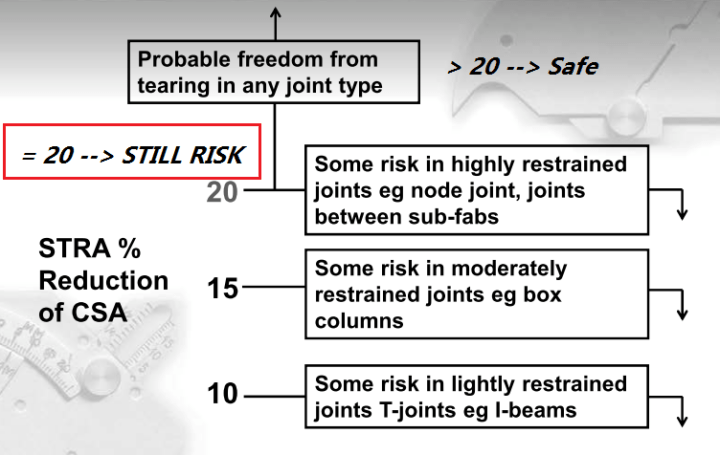

STRA Test:

Macro/Micro Examination:

This is Quantity Test

Bend Test:

This test CAN evaluate the Fusion and Ductility

T < 12mm —> Root/Face Bend, T > 12mm —> Side Bend

Former diameter (A)


PT TEST:

Operating temperature: 5* – 60*C

Best sensitivity method is Fluorescent Penetrant

MT TEST:

Dry powder can be operated over > 320 *C

Temperature limit < 650 *C

Can not use for Duplex – parametric magnetic, Only for Ferro-magnetic

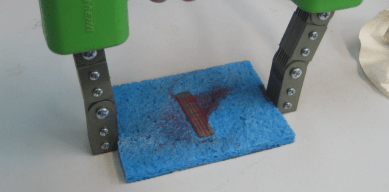

Buhmar Castrol Strip

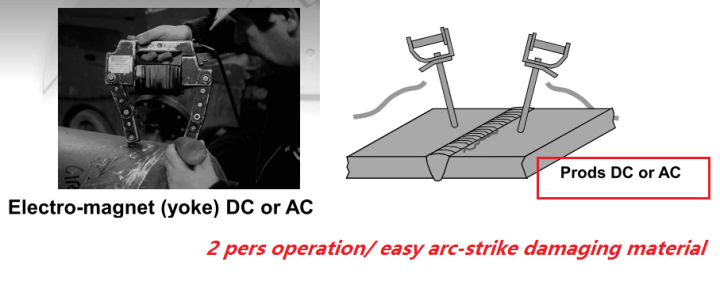

Yokes or Prods


UT TEST:

Frequency typically > 2MHz

Limit thickness > 8mm is applicable, common thickness 25mm -50mm

Not suitable for Castings ( Coarse Grain )

RT TEST:

IQI – Penetrameter

keV mean of Penetrating power

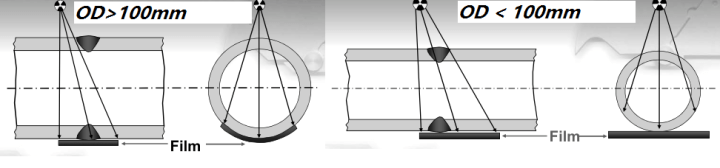

DWSI (OD>100mm) DWDI (OD<100mm)


Ir192 (10-50mm)/ Cobalt 60 (>50mm)

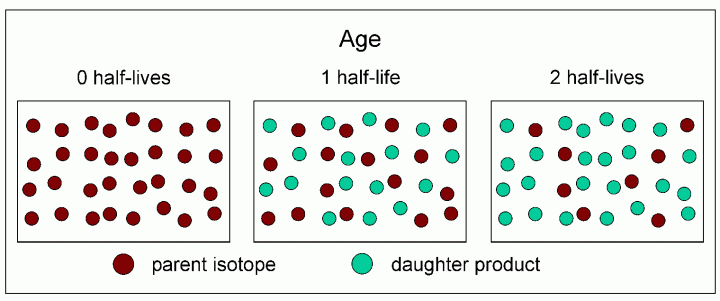

Half Life ~ Quantity by Half ( The penetrating ability is SAME)
