API 570 - PI, WELDING

Welding Inspector & WPS (PART 5)

1

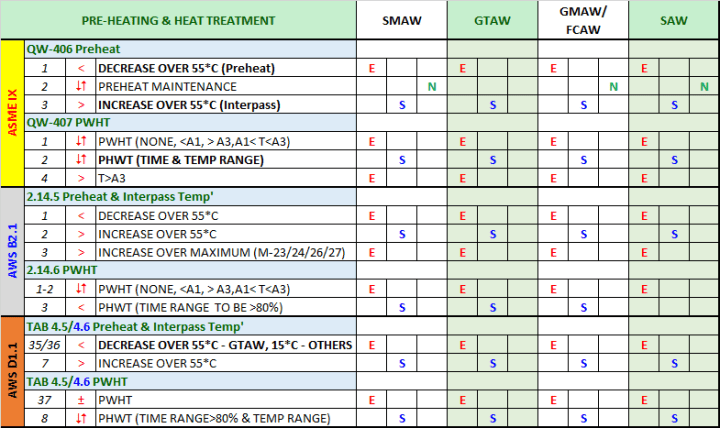

PART 5: PRE-HEATING AND HEAT TREATMENT VARIABLES

20

Normally, there’s no issue on this variable because almost the PWHT Heating devices are working in order with the correct set-up temperature range and monitoring/record system.

QW 407.1 – The term of A1/A3 transformation in metallurgy will be explained at here

EXAMPLE OF AN PWHT PROCEDURE:


THE ESSENTIAL CONTENTS IN THE PWHT RECORD
THE PWHT CHART WILL BE READ AND EVALUATED AS PER THE ABOVE PROCEDURE
