1) When measuring arc voltage, where should the measuring …

a. Across the terminals of the power source
b. Across the arc and as near as practical to the arc
c. Across the power source positive terminal and earth cable
d. It does not matter – anywhere in the circuit
  • The voltmeter may be connected only across the circuit (to the workpiece and as close as possible to the electrode!)
  • The ammeter may be connected at any point in the circuit.

2) Which of the following is NOT a fusion welding process?

a. ( answer ) Friction welding
b. Gas tungsten arc welding
c. Resistance welding
d. Laser welding
  • Rotary friction welding is a solid-state joining process
  • Welding is regarded as a joining process in which the work pieces are in atomic contact.

  • Weld is A permanent union between materials caused by heat, and or pressure (BS499)
  • Friction welding:

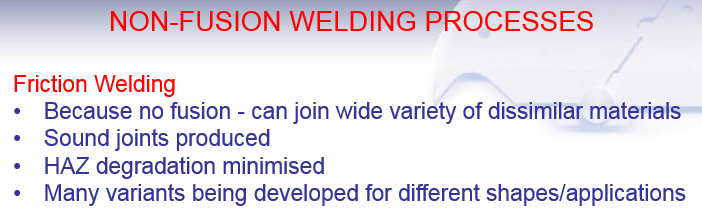

weld 22.PNG

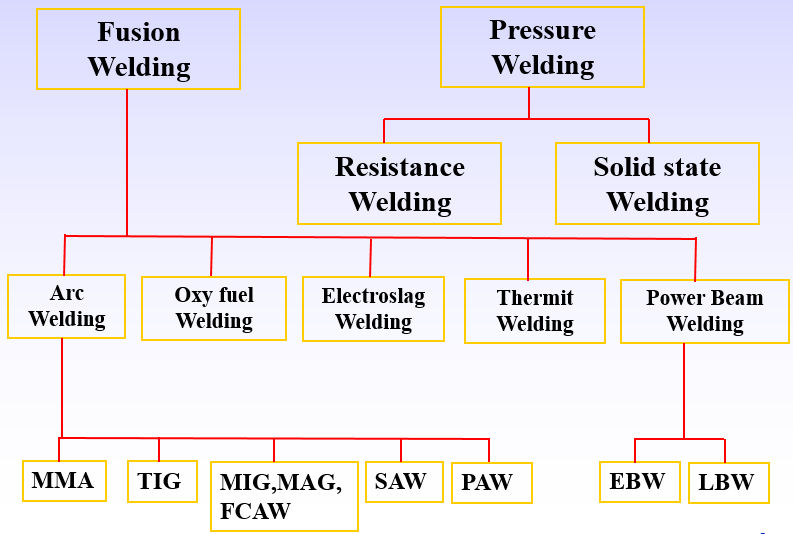

weld 23.PNG

3) What is the maximum OCV allowable to initiate an arc when using AC current?

a. 1000V
b. 10V
c. ( answer ) 90V
d. 900V

weld 24.PNG

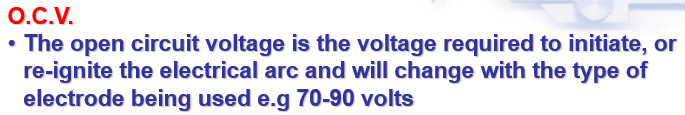

weld 25.PNG

4) Why is the OCV capped at this voltage setting?

a. To save electricity
b. To prevent exploding of the consumable
c. Allow smooth transition into welding voltage range
d. ( answer ) To reduce the risk of fatality

See previous question!

The prevention of electrical shock from welding equipment relies on three major principles.

5) A typical minimum OCV requirements for MMA (111) using filler rutile electrode …

a. 40V
b. 120V
c. 100V
d. ( answer ) 50V

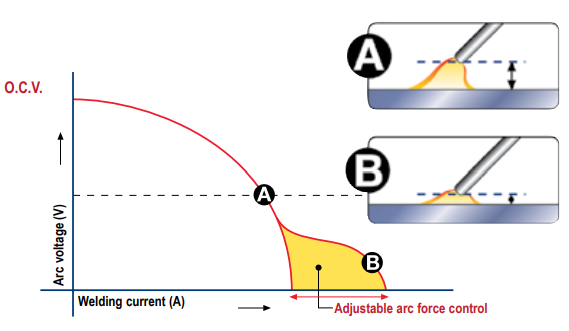

weld 26

weld 27

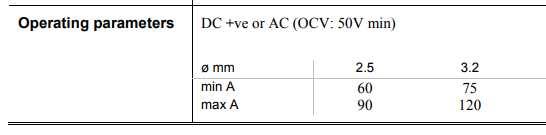

weld 28

6) A typical minimum OCV requirements for MMA (111) using basic electrode would be:

a. ( answer ) 70V
b. 40V
c. 100V
d. 20V

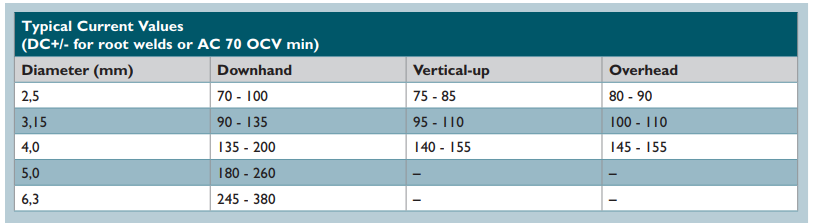

weld 29.PNG

7) Heat input can be altered from the original procedure according to EN1011, …

a. +10%
b. +20%
c.  (answer ) +25%
d. +30%

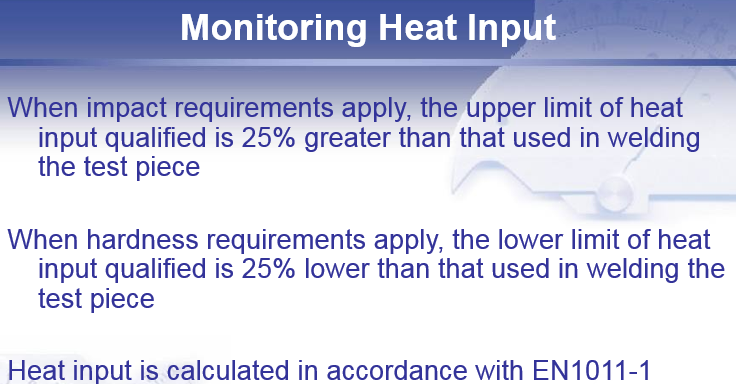

weld 30.PNG

8) A butt weld has been made by MMA in a 50mm thick impact tested steel plate. The welding electrode used was a basic type, 5mm diameter. The measured welding parameters for one of the runs was 220 amps, 21 volts, using DC+ve polarity, and a ROL of 270mm per min. What would be the arc energy?

a. Insufficient information given to calculate the arc energy
b. 1.54kJ/mm
c. ( answer ) 1.026kJ/mm
d. 2.82kJ/mm

weld 31

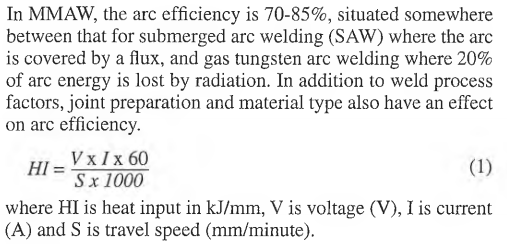

weld 32

HI = (220*21) / ( 270/60*1000) = 1.026kJ/mm

weld 33

Pls note for: what is ROL & Travel speed in MMA?

9) A butt weld has been made by MMA in a 50mm thick impact tested steel plate. The welding electrode use was a basic type, 5mm diameter. The measured welding parameters for one of the runs was 250 amps, 24 volts, using DC+ve polarity, and a ROL of 180mm per min. What would be the Arc energy?

a. Insufficient information given to calculate the arc energy
b. 1.9kJ/mm
c. 1.87kJ/mm
d. ( answer ) 2.0kJ/mm

HI = (250*24) / ( 180/60*1000) = 2.0kJ/mm

10) When using DC+ve polarity, what is the typical OCV?

a. 10-40V
b. ( answer ) 50-90V
c. 100-140V
d. 200-240V

Pls see next part:
