Pipe support – Spring Hanger (Notes)

Spring Support;

Let’s get to know the different parts of Spring Support

Spring support components.png

Pipe Supports Inspection – Spring Hanger 1;

When checking the piping, don’t forget to check the spring coil damage

Spring hanger support.png

Pipe Supports Inspection – Spring Hanger 2;

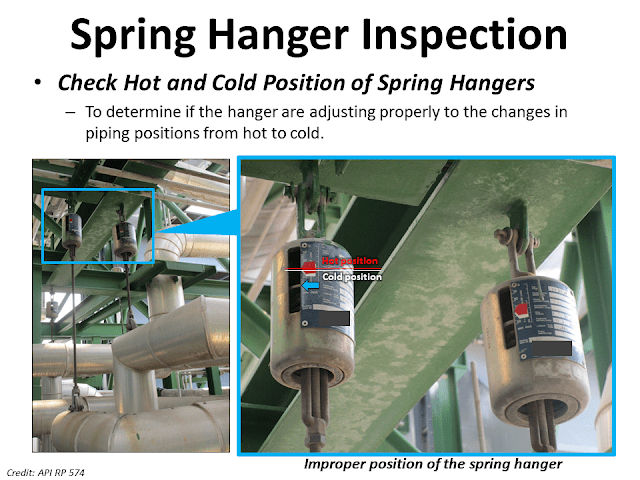

Check the position of the Spring Hanger to be in the correct position where Cold position = In shutdown and fluid unloaded (Installation load), and Hot position = In operation (Operating load).
