What is accumulation/ set pressure of PRV, PSV?

With referance to: Pressure Level Relationships chart

Accumulation & Overpressure of PRV;

When the Pressure Relief Valve (PRV) is active ( open):

-% of the excess pressure from the “system MAWP” is called “Accumulation”

-% of the pressure beyond the “set pressure” of the PRV is called “Overpressure”

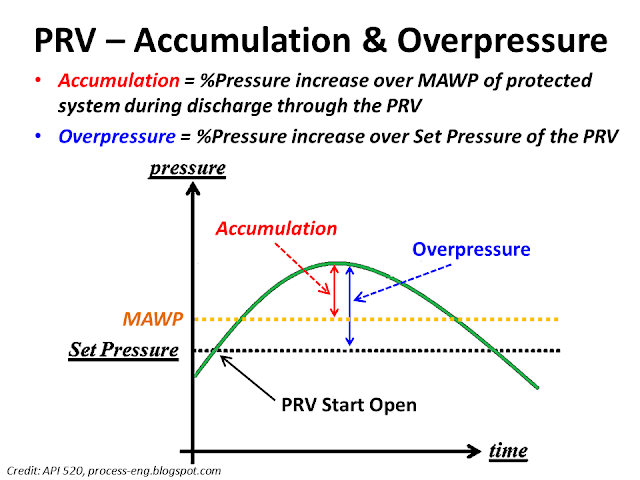

What is accumulation overpressure PRV.png



PRV – Maximum Set Pressure & Accumulation of the ASME Code;

According to ASME Code, Pressure Relief Valve (PRV) must have maximum Set Pressure and Accumulation not higher than the table (% MAWP) which will be divided into Nonfire Case and Fire Case for use in both PRV ( Single PRV) and Multiple PRVs

What is accumulation overpressure PRV 2.png
