AWS CWI Questions and Answers (Module 5) – Part 1

The free pdf file of Fourty-four (44) Module 4 Q&A model of 2000 version:

Module 5 AWS CWI QUESTIONS ANSWERS (pdf) DOWNLOAD

The Below Part 1 – Twenty-five (25) Questions are model of 2018 version

Module 5: Welding Symbols

Q5-1 The primary element of any welding symbol is referred to as the:
a. tail
b. arrow
c. reference line
d. arrow side
e. weld symbol

Q5-2 Information appearing above the reference line refers to the:
a. near side
b. arrow side
c. far side
d. other side
e. none of the above

Q5-3 The graphical representation of the type of weld is called the:
a. tail
b. welding symbol
c. weld symbol
d. arrow
e. none of the above

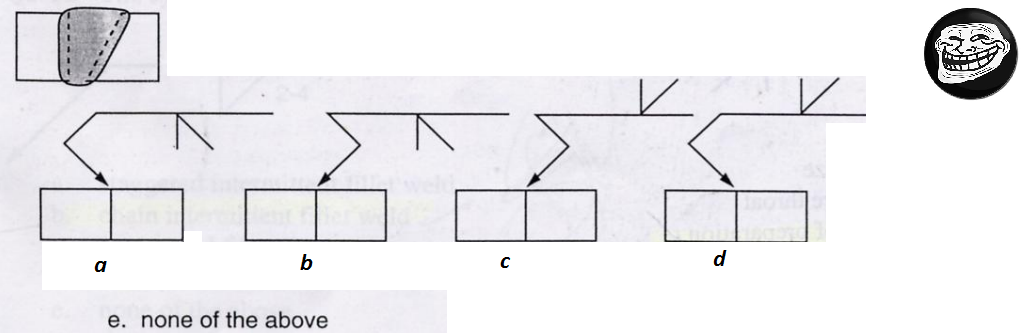

Q5-4 Which of the symbols below represents the weld shown?


Q5-5 When a weld symbol is centered on the reference line, this indicates:
a. that the welder can put the weld on either side
b. that there is no side significance
c. that the designer doesn’t know where the weld should go.
d. that the welder should weld in whatever position the weld is in.
e. none of the above

Q5-6 The symbol below depicts what type of weld?

a. flare-V-groove
b. flare-bevel-groove.
c. edge-flange
d. corner-flange
e. none of the above

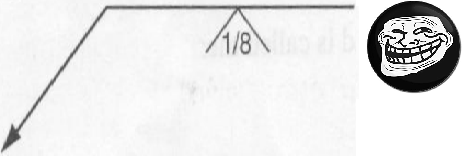

Q5-7 In the symbol below, the 1/8 dimension refers to what?

a. groove angle
b. root face
c. depth of preparation
d. weld size
e. root opening

Q5-8 In the symbol below, the 3/4 dimension refers to what?

a. weld size
b. effective throat
c. depth of preparation
d. root opening
e. none of the above

Q5-9 If applied to a 1 inch thick weld, the symbol below represents what type of weld?

a. full penetration double-bevel-groove weld
b. full penetration double-V groove weld
c. partial penetration double-bevel-groove weld
d. partial penetration double-V-groove weld
e. none of the above

Q5-10 Dimensions appearing to the left of the weld symbol generally refer to the:
a. weld length
b. weld size/depth of preparation
c. root opening
d. radius
e. none of the above

Q5-11 A triangular-shaped weld symbol represents what type of weld?
a. bevel-groove
b. flare-groove
c. flange-groove
d. V -groove
e. none of the above .

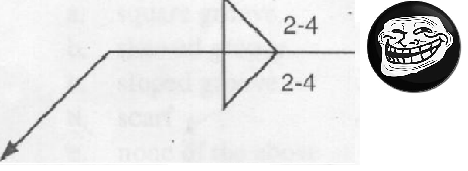

Q5-12 The symbol below represents what type of weld?

a. staggered intermittent fillet weld
b. chain intermittent fillet weld
c. segmented fillet weld
d. intermittent fillet weld
e. none of the above

Q5-13 Dimensions appearing to the right of the weld symbol generally refer to the:
a. weld size
b. root opening
c. depth of preparation
d. weld length/pitch
e. none of the above

Q5-14 A weld symbolized by a rectangular box that contains a dimension represents a:
a. plug weld
b. slot weld
c. plug weld in beveled hole
d, partially filled plug weld
e. plug weld in hole having dimension shown

Q5-15 The required spot weld size can be shown as:
a. a dimension to the right of the symbol
b. a dimension of the required nugget diameter
c. a value for the required shear strength
d. a and b above
e. b and c above

Q5-16 A number appearing to the right of the spot weld symbol refers to:
a. spot weld size
b. spot weld length
c. number of spots required
d. pitch distance between adjacent spots
e. none of the above

Q5-17 In the symbol below, the “A” dimension represents:

a. weld size
b, flange radius
c. flange length
d. depth of penetration
e. none of the above

Q5-18 In the symbol below, the symbol shown on the other side represents:

a. back weld
b. backing weld
c. melt-thru weld
d. a and b above
e. b and c above

Q5-19 The symbol below shows the use of what type of weld?

a. single-bevel-groove weld
b: single-V groove weld
c. backing weld
d. back weld
e. band c above

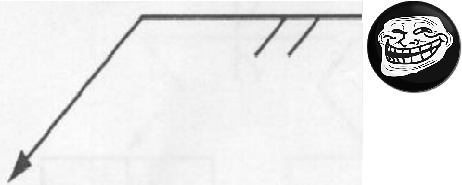

Q5-20 The symbol below shows what type of groove configuration?

a. square groove
b. skewed groove
c. sloped groove
d. scarf .
e. none of the above

Q5-21 The part of the welding symbol which can be used to convey any additional information which cannot be shown otherwise is referred to as:
a. the weld symbol
b. the arrow
c. the reference line
d. the tail
e. none of the above

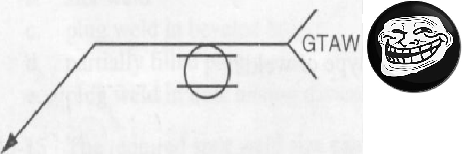

Q5-22 The symbol below shows what type of weld?

a. gas metal arc spot weld
b. resistance spot weld
c. gas tungsten arc seam weld
d. resistance seam weld
e. none of the above

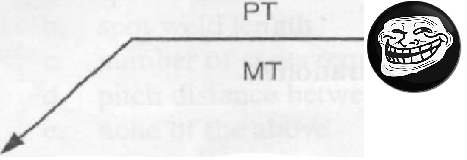

Q5-23 What nondestructive examination method is to be applied to the arrow side?

a. magnetic particle testing
b. eddy current testing
c. radiographic testing
d. penetrant testing
e, none of the above

Q5-24 A number in parentheses just outside a test symbol represents:
a. the length of weld to be tested
b. the extent of testing
c. the number of tests to perform
d. the type of test to perform
e. none of the above

Q5-25 A number to the right of a nondestructive examination symbol refers to the:
a. number of tests to perform
b. the length of weld to be tested
c. the applicable quality standard
d. the test procedure to use
e. none of the above

Key: cdcabadcabebdded-unknown-cbddcacb
