AWS CWI Questions and Answers (Module 5) – Part 2

The free pdf file of Fourty-four (44) Module 5 Q&A model of 2000 version:

Module 5 AWS CWI QUESTIONS ANSWERS (pdf) DOWNLOAD

The Below Part 2 – Thirty (30) Questions are model of 2018 version

Module 5: Welding Symbols

Q5-26 Which of the symbols represent the weld shown below?


Q5-27 Which of the symbols represent the weld shown below?

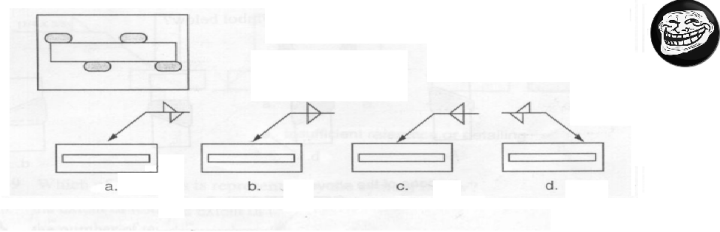

Q5-28 Which of the symbols represent the weld shown below?

e. none of the above

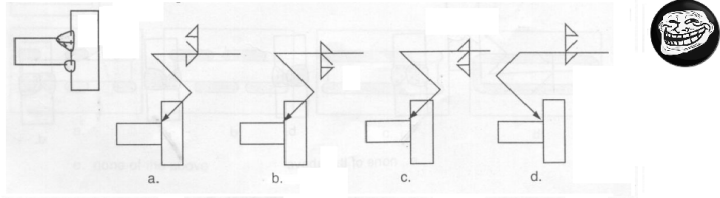

Q5-29 Which of the symbols represent the weld shown below?

e. none of the above

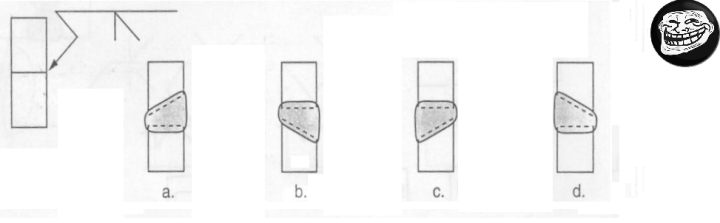

Q5-30 Which of the symbols represent the weld shown below?

e. none of the above

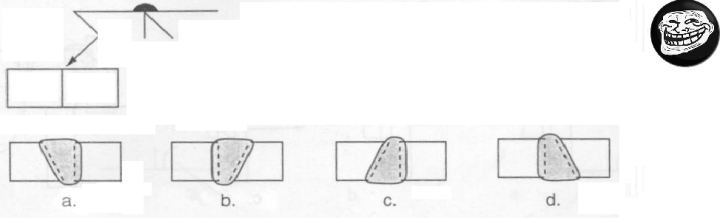

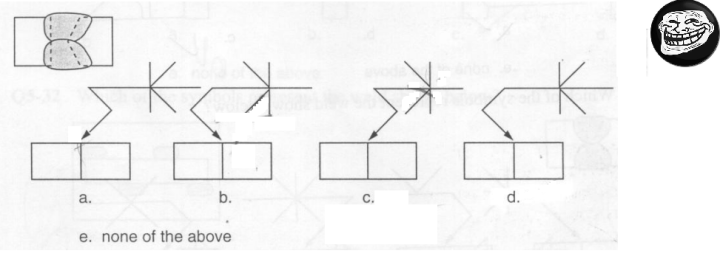

Q5-31 Which of the symbols represent the weld shown below?

e. none of the above

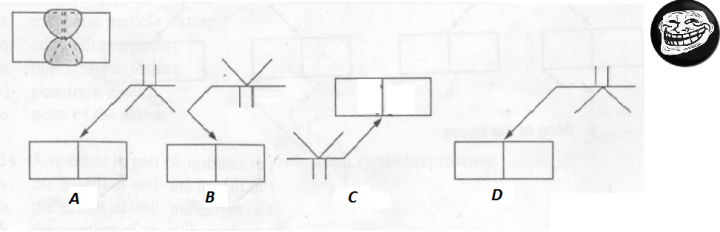

QS-32 Which of the symbols represent the weld shown below?

e. none of the above

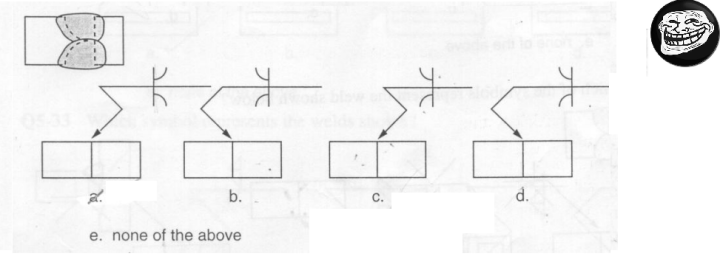

Q5-33 Which symbol represents the welds shown?

e. none of the above

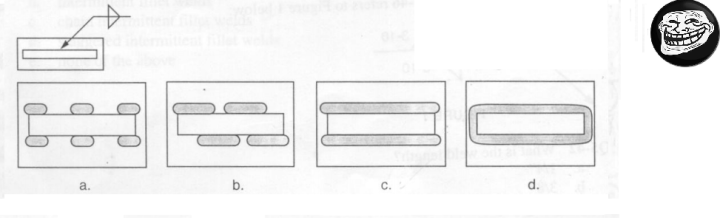

Q5-34 Which of the welds is represented by the symbol below?

e. none of the above

Q5-35 Which of the welds is represented by the symbol below?

e. none of the above

Q5-36 Which of the welds is represented by the symbol below?

e. none of the above

Q5-37 Which of the welds is represented by the symbol below?

e. none of the above

QS-38 Which of the welds is represented by the symbol below?

e. insufficient reference or detailing

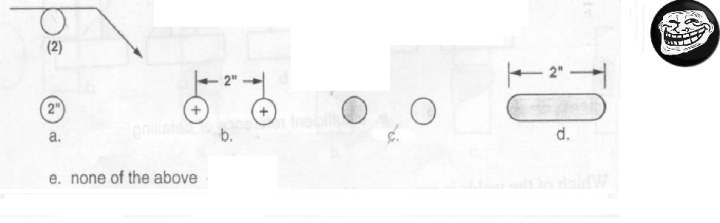

QS-39 Which of the welds is represented by the symbol below?

e. none of the above

QS-40 Which of the welds is represented by the symbol below?

e. none of the above

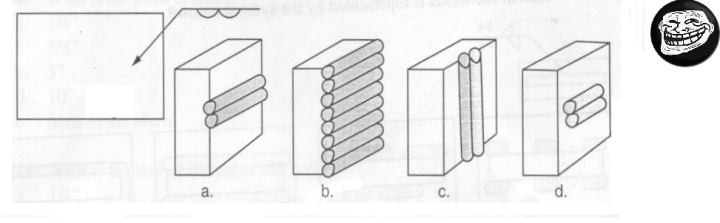

Q5-41 Which of the welds is represented by the symbol below?


Questions Q5-42 through Q5-46 refers to Figure 1 below:

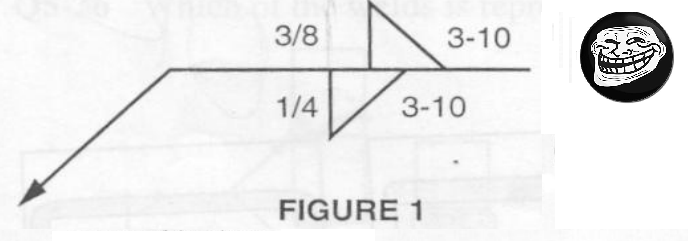

Q5-42 What is the weld length? (figure 1)
a. 1/4″
b. 3/8″
c. 3”
d. 10″
e, none of the above

Q5-43 What is the pitch distance? (figure 1)
a. 1 /4″
b. 3/8″
c. 3”
d. 10″
e. none of the above

Q5-44 What is the size of the arrow side weld? (figure 1)
a. 1 /4″
b. 3/8″
c. 3 “
d. 10″
e. none of the above

Q5-45 What is the size of the other side weld? (figure 1)
a. 1 /4″
b. 3/8″
c. 3 “
d. 10″
e. none of the above

Q5-46 What does the symbol represent? (figure 1)
a. fillet welds on both sides
b. intermittent fillet welds
c. chain intermittent fillet welds d.
d. staggered intermittent fillet welds
e. none of the above

Questions Q5-47 through Q5-51 refer to Figure 2 below

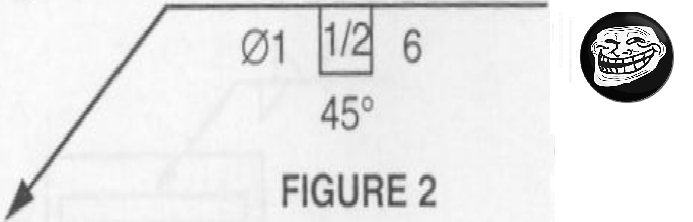

Q5-47 What is the pitch distance? (figure 2)
a. 1”
b. 1/2″
c. 45″
d. 6″
e. none of the above

Q5-48 What is the angle of the countersink? (figure 2)
a. 1 °
b. 1/2°
c. 45°
d. 6°
e. none of the above

Q5-49 What is the depth of filling? (figure 2)
a. 1″
b. 1/2″
c. 45″
d. 6″
e. none of the above

Q5-50 What is the weld size? (figure 2)
a. 1″
b. 1/2″
c. 45″
d. 6″
e. none of the above

Q5-51 What weld is represented by the symbol? (figure 2)
a. arrow side slat weld
b. other side slot weld
c. arrow side plug weld
d. other side plug weld
e. a or c above

Questions Q5-52 through Q5-56 refer to Figure 3 below:

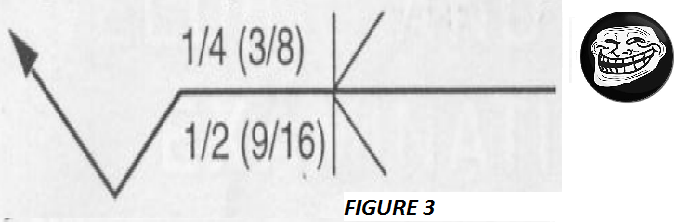

QS-52 What is the arrow side depth of preparation? (figure 3)
a. 1/4″
b. 3/8″
c. 1/2″
d. 9/16″
e. 15/16″

Q5-53 What is the other side depth of preparation? (figure 3)
a. 1/4″
b. 3/8″
c. 1/2″
d. 9/16″
e. 15/16″

QS-54 What is the other side weld size? (figure 3)
a. 1/4″
b. 3/8″
c. 1/2″
d. 9/16″
e. 15/16″

Q5-55 What is the arrow side weld size? (figure 3)
a. 1/4″
b. 3/8″
c. 1/2″
d. 9/16″
e.15/16″

Q5-56 What is the total weld size? (figure 3)
a. 1/4″
b. 3/8″
c. 1/2″
d. 9/16″
e. 15/16″

Key: daadbcababcdedbccdabddcbaccabde
