What is a Pelton Wheel Turbine?

A Pelton wheel turbine is an excessive-altitude impulse turbine (over three hundred meters) invented by the American engineer Lester Alan Pelton. The electricity at the doorway to the turbine is simply kinetic. The strain on the inlet and outlet of the turbine is atmospheric. Pelton wheel turbine is a kind of water turbine in particular utilized in hydroelectric power plants to generate power. In 2012, hydroelectric flowers accounted for about 16% of the total power generated worldwide. Hydropower is the maximum extensively used shape of renewable electricity. The Pelton wheel turbines use for high head applications while a Kaplan turbine is used for low head applications.

Components of a Pelton Wheel Turbine:

A Pelton Wheel turbine has the following major components:

  1. Nozzle
  2. Runner and buckets
  3. Casing and
  4. Breaking jet

1) Nozzle:

The nozzle is used to grow the pressure of the water motion, and the water hits the bucket or blade connected to the runner.

It controls the quantity of water coming into the runner’s bucket by putting in the lens at the nozzle.

The velocity is a needle that may contain paintings routinely or withinside the axial path of the carriage, relying on the dimensions of the unit.

As the lance is driven closer to the nozzle, the quantity of water hitting the shoe decreases. Conversely, if the ball is thrown back, the quantity of water hitting the runner increases.

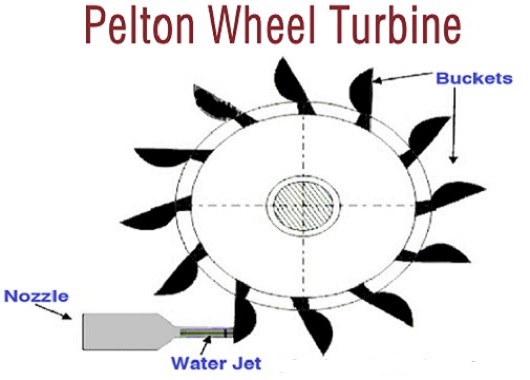

2) Runner and Buckets

In a Pelton wheel turbine, the impeller or runner is a disc with a huge variety of blades constant in a uniform association around it. The blade is a double hemispherical cup or bowl divided into symmetrical components through a well-known diuretic.

The water jet hits the splitter and splits into identical components. The jet comes out of the outer fringe of the bucket. The hub is designed so that the jet may be deflected at a hundred and sixty levels or a hundred and seventy levels.

This bucket is made from forged steel, brass, forged iron, or stainless steel, relying on the extent of the water coming into the turbine.

3) Casing

Pelton turbine housing is known as casing made from assembled forged iron or sheet steel.

It prevents water splashes and facilitates launch water in off-avenue racing. It also can play a shielding function with inside the occasion of an accident.

Working of Pelton Wheel Turbine

  1. Water is added from an excessive spring through a protracted spring known as a port.
  2. Fixing the nozzle to the stop of the strain hose hurries up the glide of water at excessive jet speeds and discharges to atmospheric strain.
  3. The modern hits the bucket force route splits the modern into bucket halves, and the wheels begin spinning.
  4. When the jet hits the bucket, the pressure of the water is decreased, and because of the round nature of the bucket, it modifications the path rotates and lands at the tail.

Advantages of Pelton Wheel Turbine:

  • The Pelton turbine has a straightforward layout and easy structure.
  • Clean water does now no longer purpose fast put on of the pinnacle height.
  • Easier to keep and look at than different mills.
  • Cavitation isn’t always an everlasting hazard.
  • No water hammer effect.
  • Compared to the reaction turbine, the general performance is highly excessive.
  • There isn’t any drain hose here.
  • It is feasible to paintings with a highly low Q (delivery) glide.
  • Among the hydraulic mills, it’s far the maximum efficiency.
  • Pelton turbine additives are smooth to assemble. Nothing complex here.
  • Water hitting and exiting the hall precisely at atmospheric strain.
  • Tangential glide turbine.

Disadvantages of Pelton Turbines:

  • In the Pelton wheel turbine, head manipulation isn’t always without problems controllable as it works with a long head.
  • The ratio among the most and minimal heads can be decreased.
  • Compared to the full height, while the tailwater stage modifications significantly, the operation cannot be used.
  • Compared to the Francis turbine, the mechanical performance of the Pelton tire decreases faster.
  • If Pelton mills had been utilized in the vicinity of Francis mills for each strength generation, the vital runners, generators, and strength flowers might be huge and affordable.

Applications of Pelton Wheel Turbine:

  1. Pelton mills are utilized in hydroelectric flowers that require ever-decrease emissions.
  2. They are used to reap better fluid speeds for max strength and performance [because turbines and impellers are designed so that the speed of the water jet is twice the speed of a rotating cylinder].
  3. It is likewise used to begin a generator, wherein the mechanical electricity linked to the turbine shaft is transformed into electric electricity.
