MOULDED LINE IN SHIPBUILDING (full guideline)

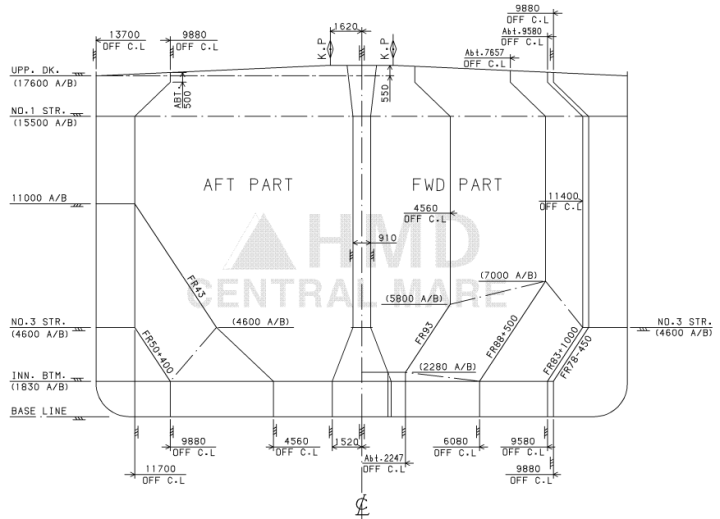

Moulded line is the reference line used for ship construction.
Base on the standardized mould line we can find out the exact location of structure members during fit-up, dimension inspection, or shaft pre-sighting ect,.

Question: Draft Mark for hull shell will be counted from Baseline or Base line included the bottom thickness ???

See the answer on the Draft Mark chapter in Survey category.
