CSWIP 3.1: Part 3 – Welding Terminology and Definitions

weld 6

We need to know these tern & define as below:

1) What is a Weld?

  • A union between materials caused by heat, and or pressure

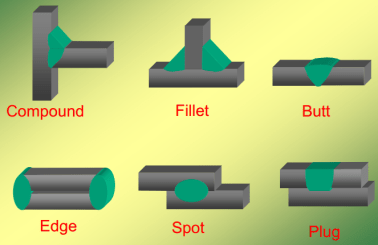

  • Joint weld:

weld 7

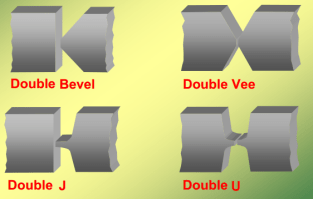

  • Types of weld Preparation:

weld 13

weld 14

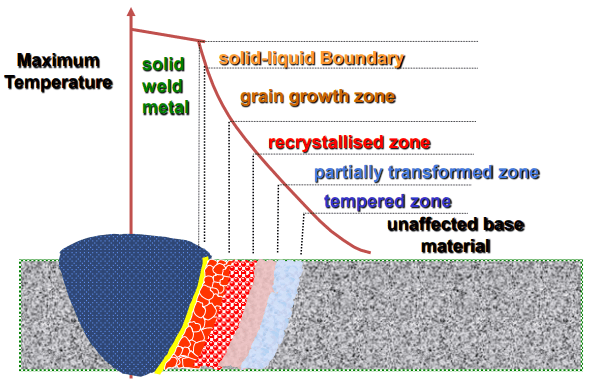

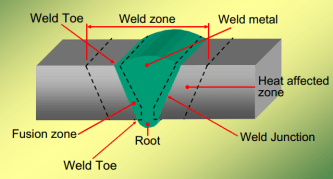

  • Weld Zone Terminology:
    weld 15

wewld 31

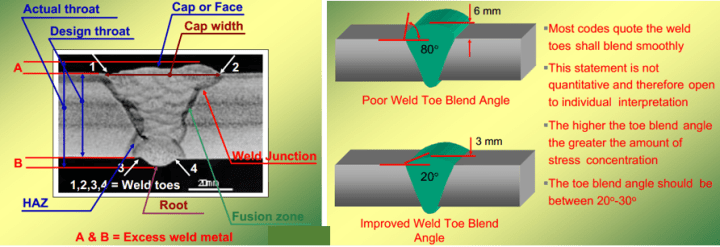

  • Butt Weld Features:

weld 18

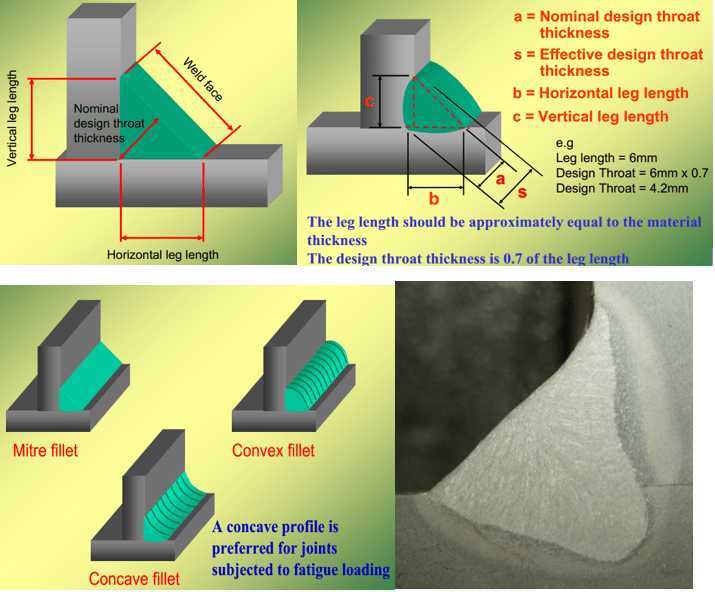

  • Fillet Weld Features:

weld 19

2) What is a Joint?

– A configuration of members

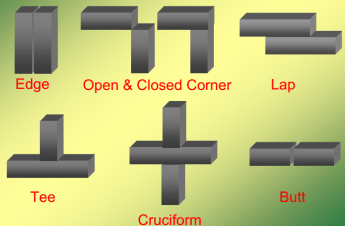

– Types of Joint type:

weld 8

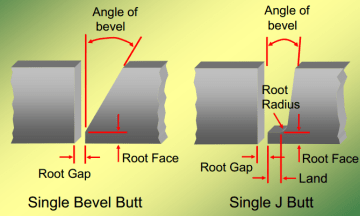

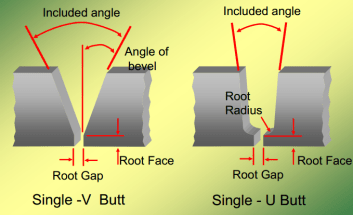

– Types of Joint Preparation:

weld 11

weld 12

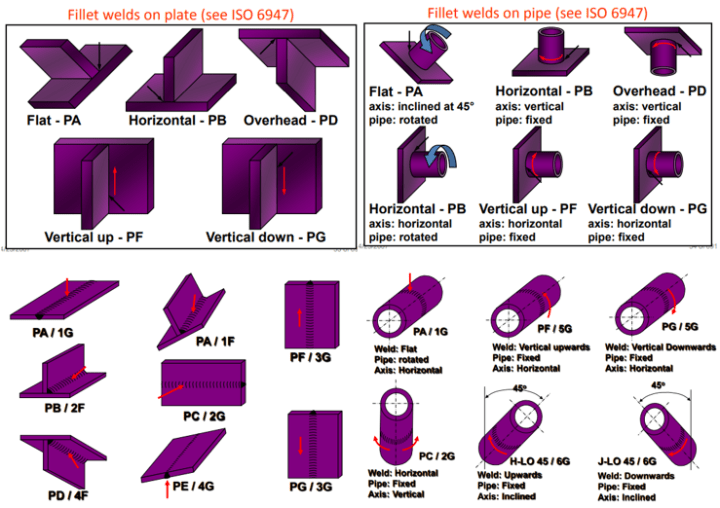

3) Welding Positions:

weld 29

weld 30

Question:

QU 1. Sketch a single-U butt joint and indicate the following
a. Root face b.Root gap c.Included angle d. Root radius

See above


QU 2. Sketch a tee joint, fillet welded and indicate the following
a. Leg length b.Throat thickness c. Root d. Weld toes

See above


QU 3. Sketch five joint types in addition to a butt joint

See above
