Steam erosion on Flanges (Samples)

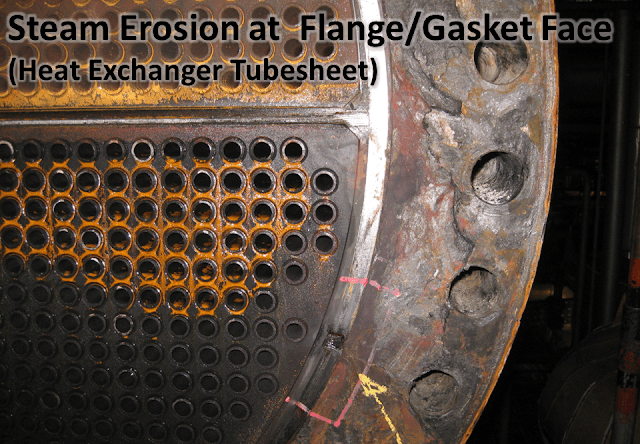

Steam Erosion at Flange / Gasket Face (Case Study 1);

Erosion (Erosion-Corrosion) by Steam area Flange / Gasket Face of Tubesheet of Shell and Tube Heat Exchanger, so remember to check the area. Flange / Gasket Face thread.

Flange face erosion 2.png

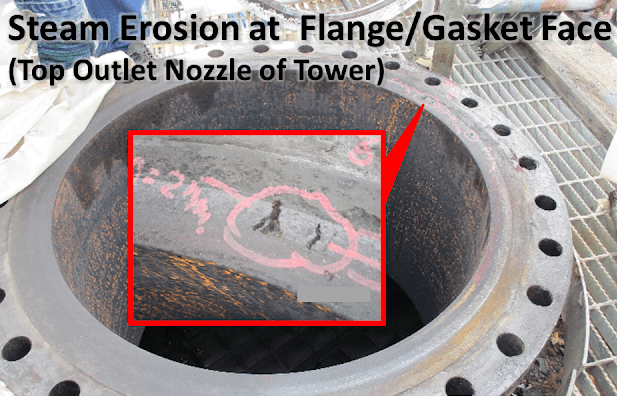

Steam Erosion at Flange / Gasket Face (Case Study 2);

Another Case study of the Steam Erosion at Flange face (Gasket face) of Top Outlet Nozzle of Steam Tower.

Flange face erosion.png
