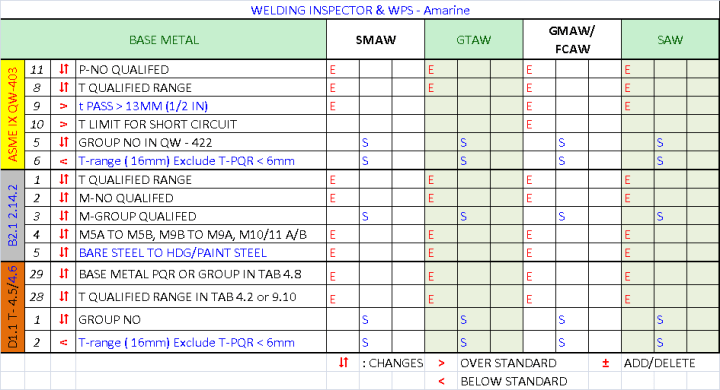

PART 2 : BASE MATERIAL VARIABLES


Key Notes:

* WPS – CVN with min.thickness is 16mm (ASME IX & AWS D1.1)

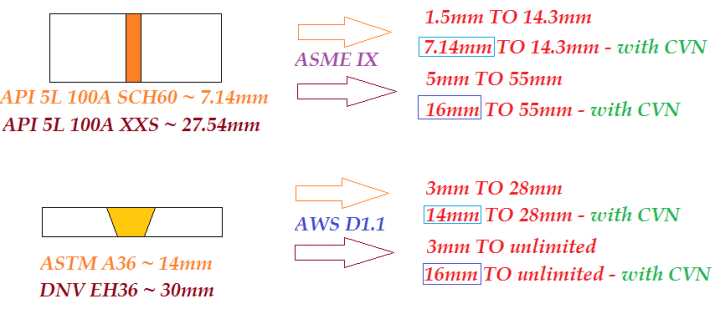

ASME QW-451.1, AWS D1.1 TAB 4.2/4.6

* AWS D1.1 ONLY:

TAB 4.1 –> (28) Diameter range for pipe welding is > 600 mm (24 inch)

* Example of ASME IX 11&5

10

Enter a caption

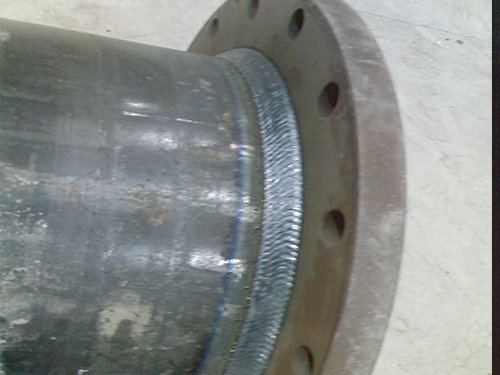

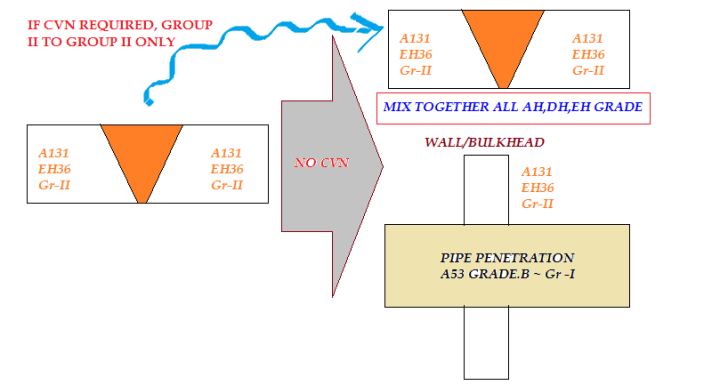

QUESTION: How about the unlisted material like SS400 Flange welded to API 5L pipe

HTB1HM.rHpXXXXXaXFXXq6xXFXXXC
Fillet WPS to be provided!!!

* Example of AWS D1.1 29&1

In mean of Structure integrity, the Combination of PQR should not be used like ASME IX flexibility.

SPECIAL NOTE:

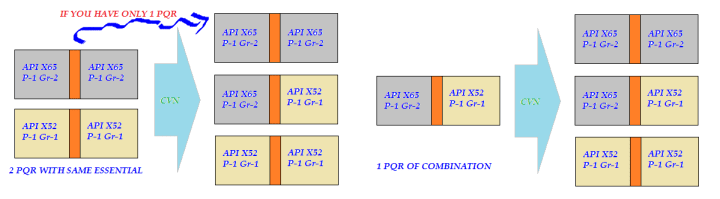

ASME IX only! Example of Thickness combination by various PQR to make new WPS (with the same variables of mother PQR, even the CVN).

See the QW 200.4 – Interpretation for more information, Be careful that the PWHT will be required in case of T>38mm (ASME VIII), or T>19 mm (ASME 31.3) 🙂
